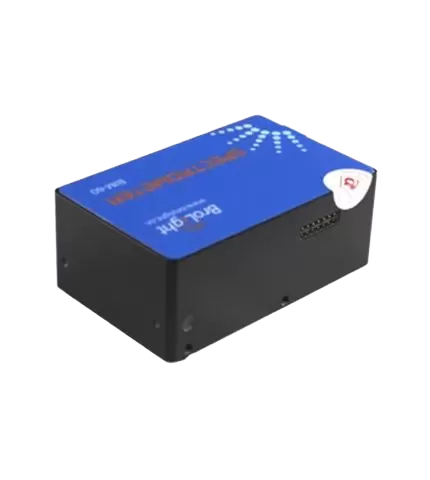

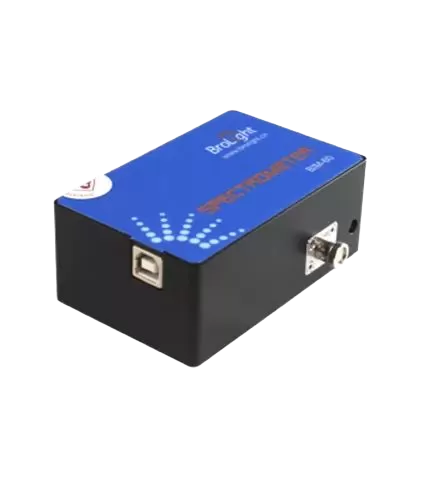

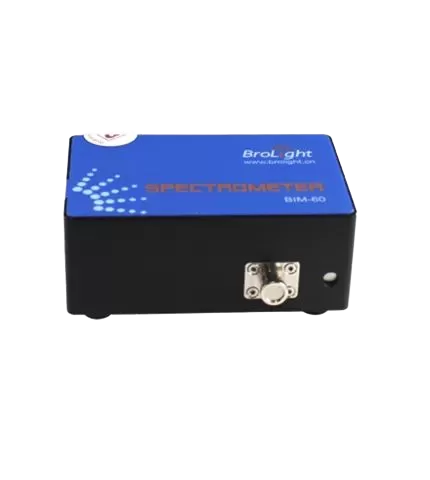

Série BIM-6002A/6002S

Espectrômetro Miniatura

Faixa de comprimento de onda

180nm-1100nm opcional

Resolução

Ótima ~ 0,35nm

Conector de fibra

SMA905

Tipo de Detector

Hamamatsu S11639 Linear CMOS Array (2048-Pixel)

Detector Pixel

2048pixel, cada pixel 14μm × 200μm

Relação sinal/ruído

600:1

Resolução A/D

16 bit

Tempo de integração

0,5 ms -65 s

Alcance dinâmico

10000:1

Modelo de gatilho

Modo Normal, Software,Hardware, Gatilho de Sincronização

Consumo de energia

250mA,5VDC

Temperatura de funcionamento

5 °C-35 °C (25 °C recomendado)

Interface de comunicação

USB2.0(12Mbps)

RS232(115200bps)

Sistema de operação

Win XP,Win7,Win8,Win10

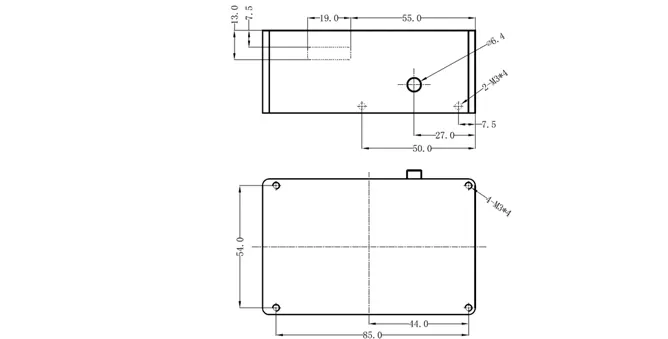

Furos de montagem

4 × M3 Furos roscados na parte inferior, 4 × M3 na lateral

Fonte de alimentação

USB

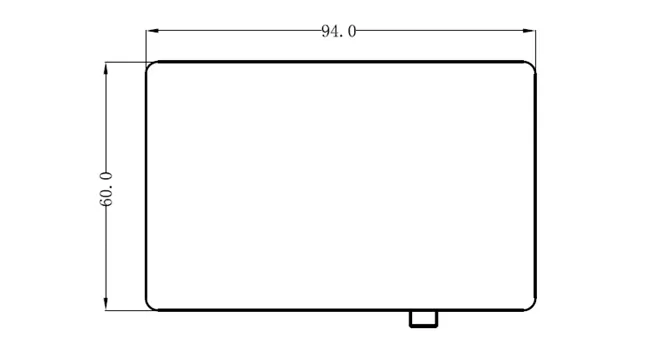

Dimensão

94mm × 60mm × 34,5mm

Peso

0,3Kg

BIM-6002A-01

BIM-6002A-01-S03L00F06G01

200-900 nm

~ 1 nm

BIM-6002A-01-S03L02F06G01

~ 1 nm

BIM-6002A-01-S04L00F06G01

~ 2 nm

BIM-6002A-01-S04L02F06G01

~ 2 nm

BIM-6002A-01-S04L02F06G17

~ 2 nm

BIM-6002A-01-S04L02F06G02

BIM-6002A-01-S05L02F06G01

~ 5 nm

BIM-6002A-02

BIM-6002A-02-S03L00F00G03

200-550 nm

~ 0,6 nm

BIM-6002A-03

BIM-6002A-03-S03L00F00G06

200-433 nm

~ 0,4 nm

BIM-6002A-04

BIM-6002A-04-S02L00F08G05

750-1100 nm

~ 0,5 nm

BIM-6002A-04-S04L01F08G05

~ 1 nm

BIM-6002A-04-S03L01F08G05

~ 0,6 nm

BIM-6002A-05

BIM-6002A-05-S03L00F05G02

350-1000 nm

~ 1 nm

BIM-6002A-05-S03L01F05G02

~ 1 nm

BIM-6002A-05-S04L00F05G02

~ 2 nm

BIM-6002A-05-S04L01F05G02

~ 2 nm

BIM-6002A-05-S04L01F05G18

~ 2 nm

BIM-6002A-05-S05L01F05G02

~ 5 nm

BIM-6002A-05-S05L01F05G18

~ 5 nm

BIM-6002A-06

BIM-6002A-06-S03L00F00G04

260-493 nm

~ 0,4 nm

BIM-6002A-07

BIM-6002A-07-S03L00F00G03

500-850 nm

~ 0,6 nm

BIM-6002A-08

BIM-6002A-08-S03L00F00G06

180-413 nm

~ 0,4 nm

BIM-6002A-08-S04L00F00G06

~ 0,7 nm

BIM-6002A-08-S05L00F00G06

~ 1,4 nm

BIM-6002A-09

BIM-6002A-09-S03L00F00G07

180-530 nm

~ 0,6 nm

BIM-6002A-10

BIM-6002A-10-S03L00F06G02

300-1000 nm

~ 1 nm

BIM-6002A-10-S03L02F06G02

BIM-6002A-10-S04L02F06G01

300-1000 nm

~ 2 nm

BIM-6002A-11

BIM-6002A-11-S03L00F06G13

200-1000 nm

~ 1,8 nm

BIM-6002A-11-S03L02F06G13

BIM-6002A-11-S04L02F06G16

~ 4 nm

BIM-6002A-12

BIM-6002A-12-S03L00F00G03

350-700 nm

~ 0,6 nm

BIM-6002A-12-S04L00F00G03

~ 1 nm

BIM-6002A-13

BIM-6002A-13-S03L00F05G02

400-1100 nm

~ 1 nm

BIM-6002A-13-S03L01F05G02

BIM-6002A-13-S04L01F05G02

~ 2 nm

BIM-6002A-14

BIM-6002A-14-S03L01F08G15

650-1000 nm

~ 0,6 nm

BIM-6002A-15

BIM-6002A-15-S03L00F00G03

300-650 nm

~ 0,6 nm

BIM-6002A-16

BIM-6002A-16-S03L00F08G05

700-1050 nm

~ 0,6 nm

BIM-6002A-17

BIM-6002A-17-S04L02F06G01

260-960 nm

~ 2 nm

BIM-6002A-18

BIM-6002A-18-S03L02F06G16

300-1100 nm

~ 1,8 nm

BIM-6002A-18-S05L02F06G16

300-1100 nm

~ 6 nm

BIM-6002A-19

BIM-6002A-19-S07L01F00G20

450-800 nm

~ 4 nm

BIM-6002A-20

BIM-6002A-20-S04L01F05G31

535-760 nm

~ 0,7 nm

BIM-6002A-20-S03L01F05G31

~ 0,4 nm

BIM-6002A-21

BIM-6002A-21-S03L00F05G19

400-850 nm

~ 0,8 nm

BIM-6002A-24

BIM-6002A-24-S03L00F00G20

430-780 nm

~ 0,6 nm

BIM-6002A-25

BIM-6002A-25-S03L02F06G17

180-880 nm

~ 1 nm

BIM-6002A-26

BIM-6002A-26-S01L00F00G03

380-730 nm

~ 0,4 nm

BIM-6002A-27

BIM-6002A-27-S02L00F00G31

460-683 nm

~ 0,3 nm

BIM-6002A-27-S03L00F00G31

~ 0,4 nm

BIM-6002A-28

BIM-6002A-28-S03L00F00G20

330-680 nm

~ 0,6 nm

1

Espectrômetro

1

2

Cabo USB

1

3

Relatório de calibração (QRCode para download de Software & Manual)

1

4

Caixa de embalagem

1
